Main Features

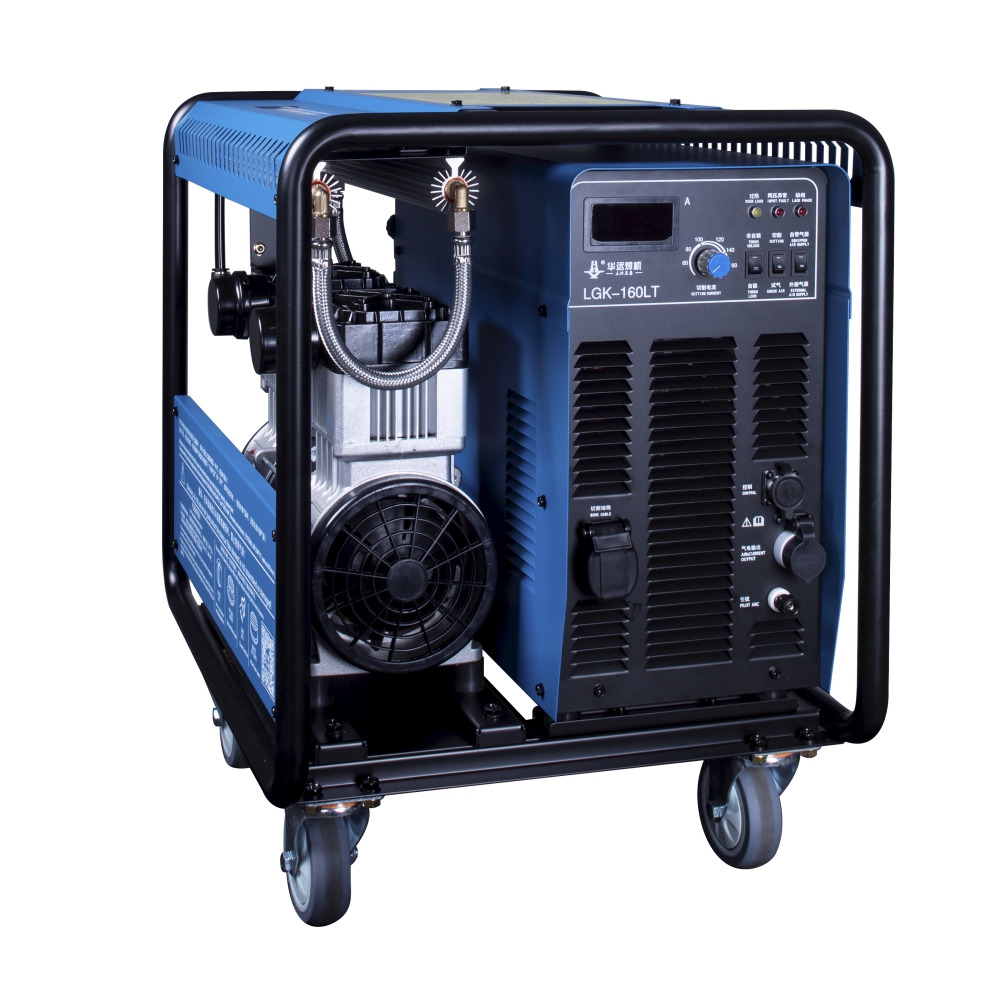

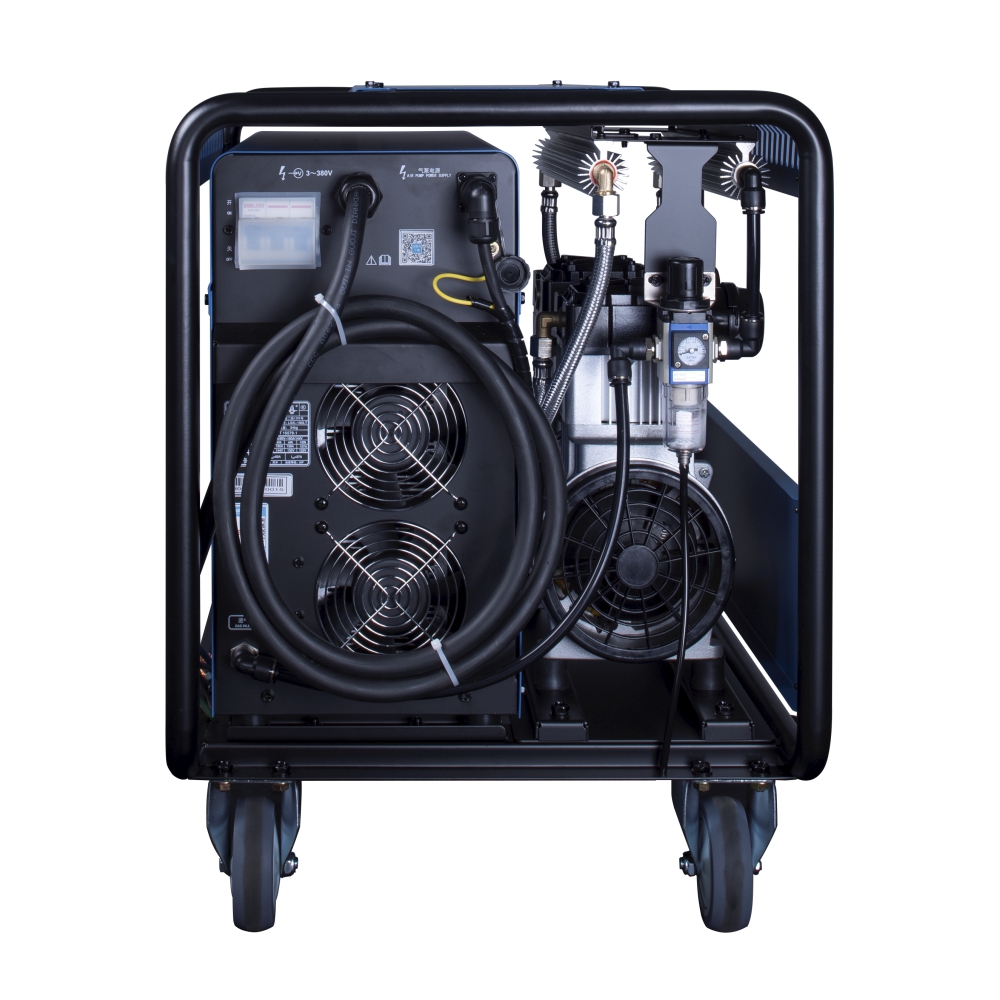

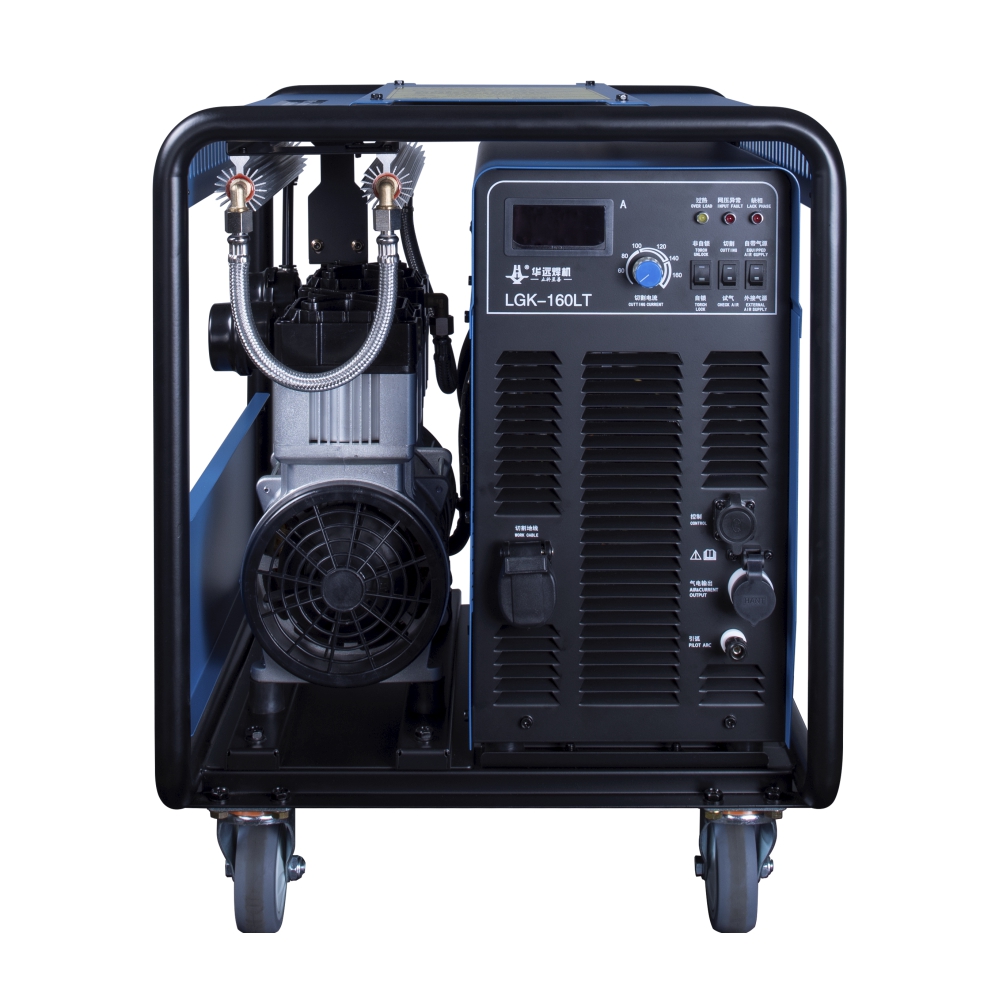

• Split design for the frame, cutting power supply, and air pump (Utility Model Patent No.ZL202130417368.9), making maintenance more convenient

• Features self-developed compressed air cooling technology (Utility Model Patent No.ZL202121345976.4), extending the electrode and nozzle lifespan by nearly three times

• Equipped with high-power 1500W/1800W air pumps

• The air pump uses a four-stage low-speed motor drive, ensuring longer piston life with the same airoutput

• Main circuit of LGK-120/160LT uses two large-capacity filter capacitors (2200μF/400V), making itcompatible with generator power supply

• Includes a test gas function and allows external gas source connection for easy pressure adjustment

• Equipped with Huayuan's self-developed cutting torch HYC-160CS, providing smoother cuts and further extending the life of electrodes and nozzles

• Features overheat, overvoltage, undervoltage, and air pump phase lack protection

Application

• Primarily used for handheld cutting of carbon steel, alloy steel, non-ferrous metals.and various othermetal materials

• Widely used in pipework, steel structures, power plant installations, outdoor elactromechanical equipment maintanance, matal demolition, and racycling innon-fixed, freguently moving construction environments. Not recommended for stationary work sites
